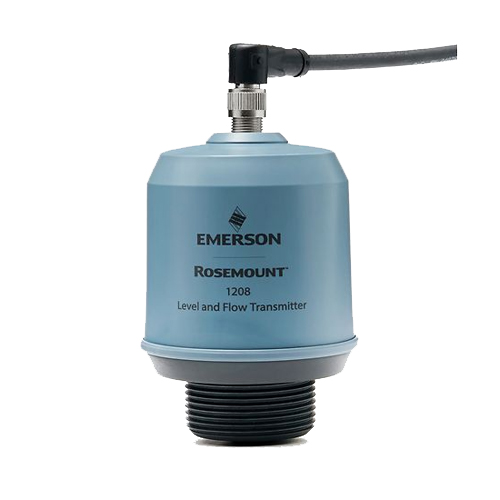

Rosemount™ 1208 Level and Flow Transmitter – Non-Contacting Radar

Rosemount™ 1208 Level and Flow Transmitter – Non-Contacting Radar

The Rosemount 1208 Series provides accurate and reliable level measurement and open channel flow calculations. The radar level transmitter has been designed to solve challenges in water and wastewater-, utilities- and basic chemical applications. The Rosemount 1208 uses continuous non-contacting radar technology in a compact PVDF housing with drinking water and food grade approvals. Its encapsulated design also withstands outdoor conditions and is fully submersible over extended periods of time. The Rosemount 1208 Series communicates via Bluetooth® wireless technology, 4-20 mA HART® or IO-link and has a broad range of mounting accessories, making it easily integrate into both new as well as existing systems.

Categories Emerson / Rosemount Radar Tank Gauging, Instrumentation Tag Tank Gauging Radar Level

Description

Features

Compact and robust design to withstand harsh environments, designed for outdoor conditions, submersion and hazardous location installations
Simple configuration over your tablet/mobile device via Bluetooth® wireless technology
4-20 mA HART or 4-20 mA, IO-link, and switching output deliver ease of integration to new or existing systems
Non-contacting radar technology ensures maintenance free solution unaffected by process conditions such as media density, viscosity, condensation, temperature, and pressure
Designed for ease of use, no complex configuration needed. Setup within minutes
M12 electrical connector allows for simple installation, startup, and cable/sensor replacement
PVDF housing to withstand corrosion in both wastewater- and chemical applications
Measure flow in flumes and open channels with incorporated flow measurement software
1.5″ G and NPT process connections are compatible with a range of flanges and adapters
Drinking water and food grade approved material composition allows for use in food- and drinking water applications
80 GHz and FMCW technology allows for a focused beam angle, making the sensor less sensitive to internal obstructions within the application
Fast Sweep Technology provides continuous surface tracking for greater measurement reliability and accuracy, especially in fast filling applications
